DERCO MOULD Delivers Custom Injection Moulds with Measurable Quality, Global After-Sales Support, and Industry-Specific Solutions
In modern packaging production, Package Parts produced by injection molding offer unmatched efficiency, repeatability, and material versatility. Unlike generic packaging components, injection-molded Package Parts achieve tolerances as tight as ±0.01 mm, cycle times from 15 to 60 seconds per shot, and annual production volumes exceeding 2 million units per single cavity mould. For industries ranging from food and beverage to pharmaceuticals, the choice of Package Parts directly impacts line speed, product protection, and brand consistency.
DERCO MOULD ENGINEER CO., LTD specializes in high-standard injection mould customization for Package Parts. With in-house capabilities from model optimization, mould design, and precision machining to mould trial, delivery, and after-sale service, DERCO ensures every batch of Package Parts meets validated performance metrics. This article presents technical data, application examples, and selection criteria for Package Parts used as Trays and inserts, Cosmetics packaging, Containers, and Caps and closures.
1. Why Injection-Molded Package Parts Outperform Other Processes
Injection molding provides measurable advantages for Package Parts:
Dimensional stability – Typical precision of ±0.02–0.05 mm for critical sealing surfaces.
Material options – More than 25 engineering thermoplastics (PP, PET, HDPE, LDPE, PS, ABS) plus biodegradable compounds.
High output – Multi-cavity moulds produce up to 128 identical Package Parts per cycle.
Low per-part cost – After mould investment, Package Parts cost often drops below $0.03 per unit for high-volume orders.
For Trays and inserts, injection molding ensures consistent wall thickness (0.4–1.2 mm) and integrated ribs for stacking strength. For Containers, the process guarantees uniform neck finish and leak-proof geometry. For Caps and closures, injection molding achieves tamper-evident bands and hinge flex life exceeding 50,000 cycles.
Selection tip: When choosing Package Parts for automated filling lines, request mould steel hardness (HRC 48–52) and guide pillar alignment precision (±0.01 mm) to avoid jamming.
2. Industry-Specific Package Parts: From Trays and inserts to Caps and closures

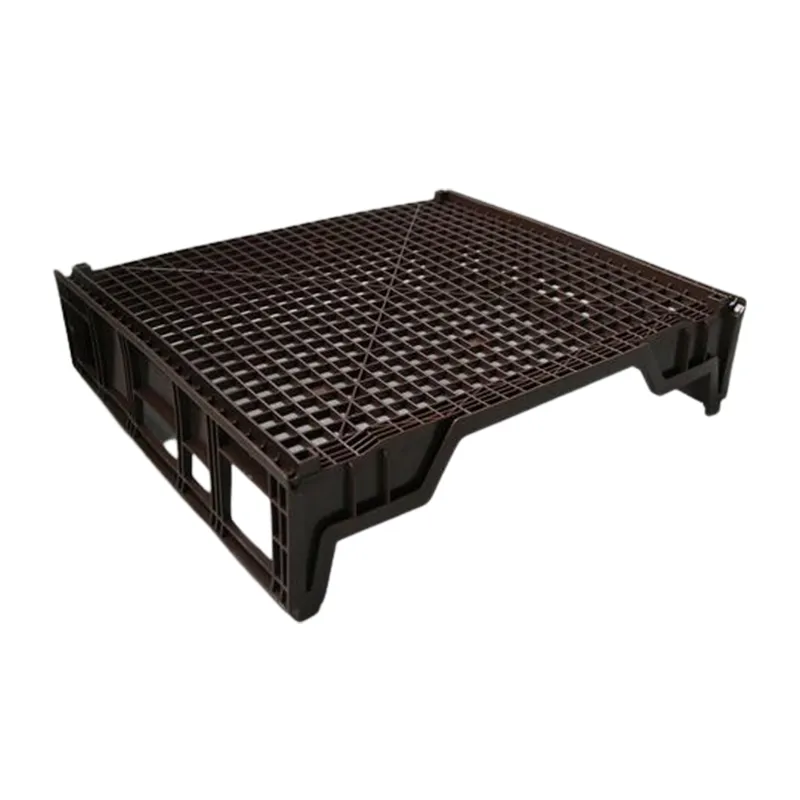

2.1 Trays and inserts – Protection and Presentation
In electronic, medical, and food packaging, Trays and inserts must absorb shock, prevent electrostatic discharge (ESD), and allow automated loading. Injection-moulded Trays and inserts offer custom cavities with draft angles (1°–3°) for easy part ejection. DERCO produces Trays and inserts with integrated RFID pockets, drainage holes, and non-slip textures. Typical wall thickness for Trays and inserts ranges 0.8–1.5 mm, with load capacity tested at 15–30 kg per tray.
2.2 Cosmetics – Aesthetics and Chemical Resistance
Cosmetics packaging demands flawless surface finish, compatibility with oils and alcohols, and premium tactile feel. Injection-moulded Package Parts for Cosmetics achieve SPI-A2 mirror polish and two-shot molding for soft-touch grips. DERCO has delivered Cosmetics moulds for lipstick tubes, compact cases, and airless pump bottles – all with 100% cosmetic surface inspection. Cosmetics brands require Package Parts that resist stress cracking when exposed to cyclopentasiloxane or ethanol. DERCO provides material compatibility reports for each Cosmetics project.
2.3 Containers – Rigid, Leak-Free, and Stackable
From yogurt cups to industrial chemical pails, Containers must withstand filling pressure, transportation vibration, and thermal variations. Injection-moulded Containers typically have wall thickness from 0.6 mm (thin-wall food cups) to 3.0 mm (heavy-duty industrial pails). DERCO designs Containers moulds with hot runner systems to reduce sprue waste by 60–80%. For Containers used in microwave or freezer applications, DERCO validates material shrinkage (0.3–1.2%) to guarantee lid fit after temperature cycling.
2.4 Caps and closures – Sealing Efficiency and User Convenience
Injection-moulded Caps and closures provide critical functions: child resistance, tamper evidence, and one-way dispensing. DERCO manufactures Caps and closures moulds with unscrewing mechanisms (hydraulic or servo-driven) for threaded finishes. A standard flip-top Caps and closures hinge endures 30,000 opening/closing cycles without fracture. For carbonated beverages, Caps and closures must hold internal pressure up to 6 bar with leak rate below 0.1 cm³/min. DERCO supplies Caps and closures moulds compliant with DME and HASCO standards, including spare parts for 2 years of continuous production.
3. DERCO’s Engineering Data and Customization Process for Package Parts
All Package Parts moulds from DERCO follow a documented workflow:
| Step | Activity | Typical Duration | Deliverable |
|---|---|---|---|
| 1 | Model optimization (DFM) | 5–7 days | Feasibility report, draft angle suggestion |
| 2 | Mould design (3D) | 10–15 days | Assembly drawing, steel grade (e.g., S136, 718H) |
| 3 | Mould manufacture | 20–40 days | CMM inspection report (accuracy ±0.002 mm) |
| 4 | Mould trial | 2–3 days | Sample Package Parts (first 100 shots) |
| 5 | Customer approval | 7 days | Mould acceptance certificate |
Each mould component for Package Parts is produced and inspected according to separate standard drawing. DERCO provides electrodes upon request. After approval, Package Parts moulds are packed with standard export wooden cases (water content <12%, nailed and strapped) to withstand sea/air freight.
4. Global After-Sales Service for Continuous Production of Package Parts
DERCO guarantees your Package Parts production line stays operational:
Spare parts – Hot runner nozzles, ejector pins, core inserts, and cooling fittings available within 72 hours.
Engineer dispatch – On-site assistance for mould commissioning or repair (travel within 5 working days).
Global partners – Local support stations in Europe, South America, and Southeast Asia for direct service of Package Parts moulds.
All Package Parts moulds come with full documentation (material certificates, heat treatment records, assembly drawings). DERCO also supplies electrodes for future refurbishment of Trays and inserts or Caps and closures cavities.
Summary Table – Choosing the Right Injection-Moulded Package Parts
| Application | Recommended Material | Key Parameter | DERCO Mould Feature |
|---|---|---|---|
| Trays and inserts | HIPS, ABS, PC | Thickness 0.8–1.5 mm | Integrated drainage and stacking ribs |
| Cosmetics | PETG, Acrylic, PCTG | SPI-A2 polish finish | Two-shot soft-touch capability |
| Containers | PP, HDPE, PET | Neck finish accuracy ±0.03 mm | Hot runner for 80% less waste |
| Caps and closures | PP, LDPE, HDPE | Leakage <0.1 cm³/min@6 bar | Unscrewing mechanism, 1M cycle life |
Contact us for Bulk Quotes & Custom Moulds for Your Package Parts
DERCO MOULD ENGINEER CO., LTD
WhatsApp: +86 136 2095 8219
Email: Sales@derco-mould.com
For detailed quotation, please provide part drawings, material specifications, and estimated annual volume. We will reply with DFM analysis and mould steel options within 48 hours.
